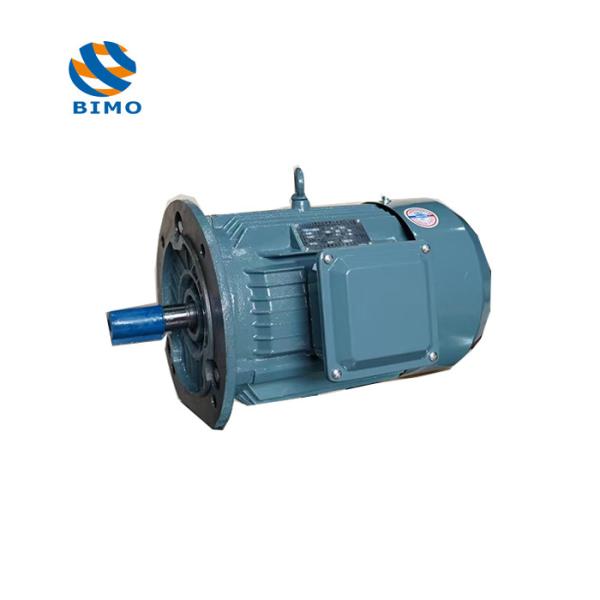

IE4 YE4 Premium Eficiency 5.5KW 1500rpm Three Phase Low Voltage AC Induction Asynchronous Electric Motor AC Motor

The YE4 series motor have large starting torque, low noise , small vibration, high degree of protection, large margin of
temperature rise, safe and reliable operation, ect.

It can drive machine tools , fans, pumps , compressors, mixers, packaging machinery, construction machinery and other mechanical
transmission equipment , widely used in industries such as agriculture, national defense, chemical industry, petroleum ,
transportation, food and beverages, medicine and other fields.

Rated Voltage: 380V,415V,or customerized.
Rated Frequency: 50Hz or 60Hz
Protection Level: IP55

Cooling Method: IC411
Insulation Class: F
Operation Mode: S1
Altitude: ≤ 1000M
Ambient Temperature: -15℃~+40℃

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
