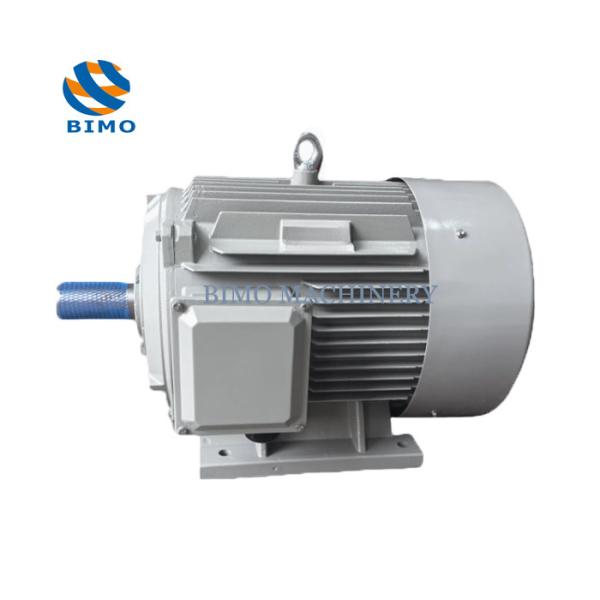

NEMA Standard 256T 15kw 4P 380-415V/660-720V 50Hz Three Phase Asynchronous Electric Motor

The NEMA standard three-phase asynchronous motor is a totally enclosed fan-cooled motor. This series of motors is designed and manufactured in accordance with the American NEMA standard. The NEMA standard motors are divided into four designs: A, B, C, and D. Our company has designed NEMA standard high-efficiency three-phase asynchronous motors and NEMA standard high starting torque and high slip three-phase asynchronous motors according to market demand. The NEMA standard high-efficiency three-phase asynchronous motor (Design B) is suitable for occasions with no special requirements and can be used as the power support for various mechanical equipment.

2P			4P			6P
TYPE	Kw		TYPE	Kw		TYPE	Kw
143T	1.5		143T	1.1		143T	0.75
145T	2.2		145T	1.5		145T	1.1
184T	3.7		184T	2.2		184T	1.5
213T	5.5		184T	3.7		184T	2.2
213T	7.5		213T	5.5		213T	3
254T	11		215T	7.5		215T	3.7
254T	15		254T	11		215T	5.5
256T	18.5		256T	15		254T	7.5
284TS	22		284T	18.5		256T	11
326TS	30		286T	22		286T	15
326TS	37		326T	30		326T	18.5
365TS	45		364T	37		326T	22
405TS	55		365T	45		365T	30
444TS	75		405T	55		405T	37
445TS	90		444T	75		444T	45
447TS	110		445T	90		445T	55
449TS	132		447T	110		447T	75
	160		449T	132		449T	90
	185			160			110
	200			185			132
500	220			200		500	160
	250		500	220			185
	280			250			200
	315			280			220
	355			315			250

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
