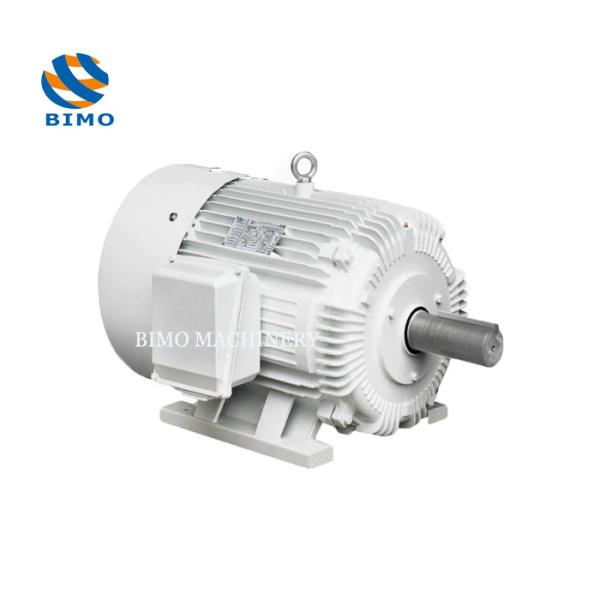

NEMA Design DStandard EPACT Oil Well Pump Motor 2HP Three Phase Induction Electric AC Motor 230/460V Cast Iron Motor

HP:2-125HP
RPM:1200, 900 RPM
Frame:184T-449T
Protection:IP55
Class B Temp Rise
40ºC Ambient Temperature Rating
Class F Insulation For VFD Application
Sator Winding Tropicalization

Voltage	HZ	HP	P0LES	RPM	Frame	Insulation Class	Enclosure Type	Service Factor
230/460/796	60	2	6	1200	184T	F	TEFC	1.15
230/460/796	60	3	6	1200	213T	F	TEFC	1.15
230/460/796	60	5	6	1200	215T	F	TEFC	1.15
230/460/796	60	7.5	6	1200	254T	F	TEFC	1.15
230/460/796	60	10	6	1200	256T	F	TEFC	1.15
230/460/796	60	15	6	1200	284T	F	TEFC	1.15
230/460/796	60	20	6	1200	286T	F	TEFC	1.15
230/460/796	60	25	6	1200	324T	F	TEFC	1.15
230/460/796	60	30	6	1200	326T	F	TEFC	1.15
230/460/796	60	40	6	1200	364T	F	TEFC	1.15
230/460/796	60	50	6	1200	365T	F	TEFC	1.15
230/460/796	60	50	6	1200	404T	F	TEFC	1.15
230/460/796	60	60	6	1200	404T	F	TEFC	1.15
230/460/796	60	75	6	1200	405T	F	TEFC	1.15
230/460/796	60	75	6	1200	444T	F	TEFC	1.15
230/460/796	60	100	6	1200	444T	F	TEFC	1.15
230/460/796	60	125	6	1200	445T	F	TEFC	1.15
230/460/796	60	150	6	1200	449T	F	TEFC	1.15
230/460/796	60	200	6	1200	449T	F	TEFC	1.15
230/460/796	60	2	8	900	213T	F	TEFC	1.15
230/460/796	60	3	8	900	215T	F	TEFC	1.15
230/460/796	60	5	8	900	254T	F	TEFC	1.15
230/460/796	60	7.5	8	900	256T	F	TEFC	1.15
230/460/796	60	10	8	900	284T	F	TEFC	1.15
230/460/796	60	15	8	900	286T	F	TEFC	1.15
230/460/796	60	20	8	900	324T	F	TEFC	1.15
230/460/796	60	25	8	900	326T	F	TEFC	1.15
230/460/796	60	30	8	900	364T	F	TEFC	1.15
230/460/796	60	40	8	900	365T	F	TEFC	1.15
230/460/796	60	50	8	900	404T	F	TEFC	1.15
230/460/796	60	60	8	900	405T	F	TEFC	1.15
230/460/796	60	75	8	900	444T	F	TEFC	1.15
230/460/796	60	100	8	900	445T	F	TEFC	1.15
230/460/796	60	125	8	900	447T	F	TEFC	1.15
230/460/796	60	150	8	900	449T	F	TEFC	1.15

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
