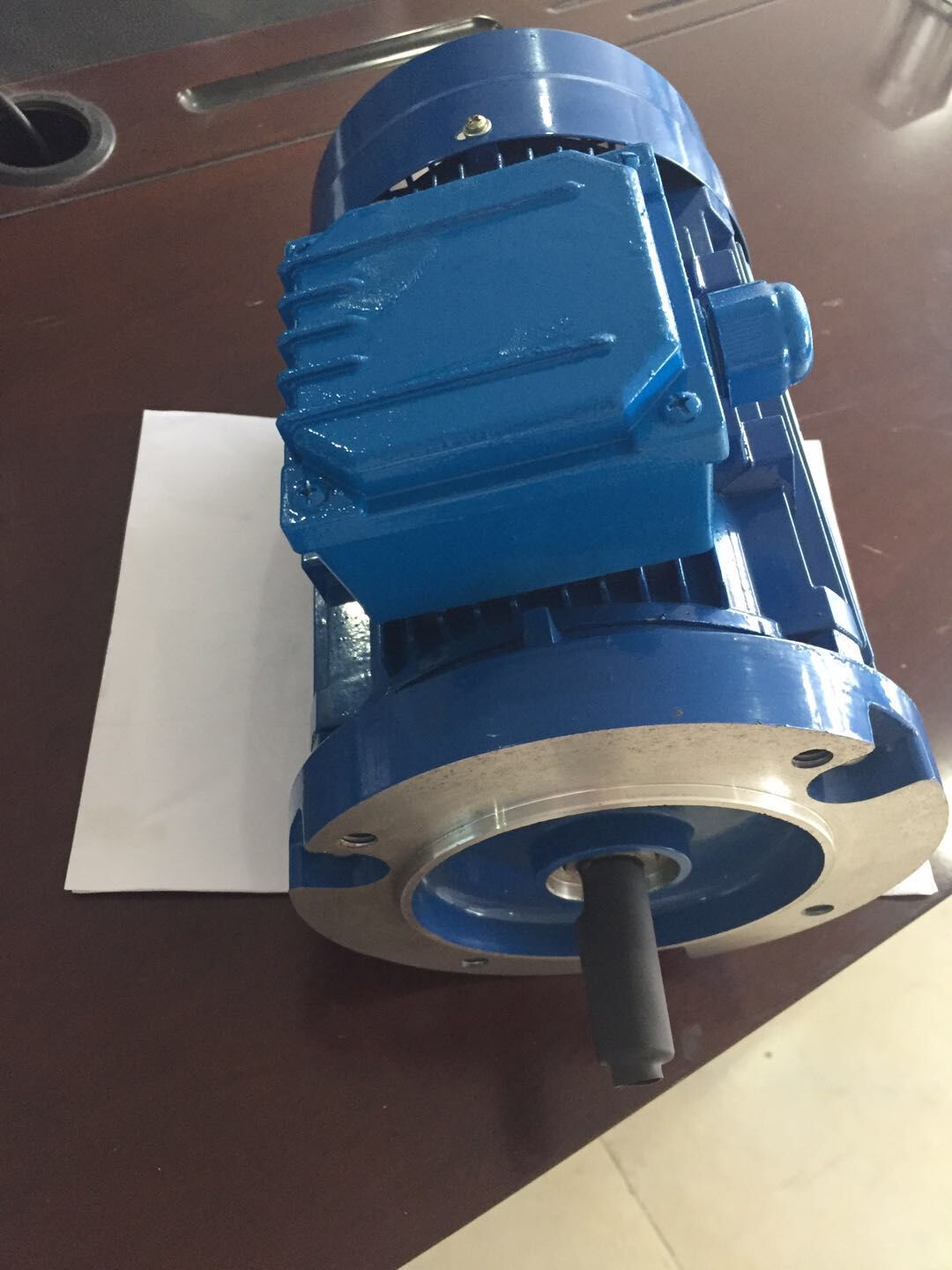

NEMA TEFC Motor 40HP 600V 1800rpm 60Hz 326-T Electric AC Motor 3 Phase

Ask Lasest Price
Brand Name :	BM
Model Number :	NEMA326T
Certification :	UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000PC per Month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

NEMA TEFC Motor 40HP 600V 1800rpm 60Hz 326-T Electric AC Motor 3 Phase

NEMA Premium TEFC Three Phase 40HP 600V 1800rpm 60Hz 326-T AC Electric Motor Induction Motors

1, Typical applications include operations where continuous or frequent duty is required. Constant torque operation is 10:1, Variable torque operation is from zero to base speed. Premium-efficiency motors are designed to conserve energy over extended time period. Class F insulated, 1.15 service factor.

2, Low-lose electrical grade lamination steel. Cast iron frames, IP55 protection, double lip seal keeps moisture and contamination. Over size bearing, spike resistant magnet wire, conduit box fully gasket and ground lug in conduit box. Stainless steel nameplate. C&D face kits available.

Output HP	Frame	Conn.	Code	Full load r/min	Current at 460V			Torque			Efficiency			Power Factor
Output HP	Frame	Conn.	Code	Full load r/min	Idle	Full load (A)	Locked rotor (A)	Full load (LB-FT)	Locked rotor %	Break down %	Full load%	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
1	143T	2Y/Y	K	3495	0.74	1.5	9.6	1.50	220	265	77.0	81.08	78.29	82	74.75	62.34
1.5	143T	2Y/Y	K	3490	0.87	2.0	13.8	2.26	215	250	84.0	84.34	83.46	84	79.20	68.59
2	145T	2Y/Y	J	3485	0.90	2.6	18.7	3.01	210	240	85.5	86.16	85.91	85	83.61.	74.69
1	143T	2Y/Y	K	1745	1.10	1.6	11.0	3.01	280	300	85.5	84.84	81.54	70	61.33	48.58 47
1.5	145T	2Y/Y	K	1735	1.32	2.2	14.1	4.54	250	280	86.5	86.93	82.77	74	66.41	53.42
2	145T	2Y/Y	J	1730	1.72	2.9	18.0	6.07	245	270	86.5	86.88	82.63	75	67.63	54.57
1	145T	2Y/Y	J	1155	1.30	1.7	9.8	4.55	260	280	82.5	81.96	77.97	65	55.57	42.55
3	182T	2Y/Y	J	3530	1.26	3.7	29.8	4.46	200	230	86.5	86.26	83.85	87	84.69	77.0
5	184T	2Y/Y	H	3520	1.56	6.0	45.1	7.46	180	215	88.5	88.75	87.64	88	85.51	78.01
3	182T	2Y/Y	J	1760	1.41	3.6	27.0	8.95	215	250	89.5	90.06	88.51	86	81.77	71.87
5	184T	2Y/Y	H	1755	2.11	6.1	40.2	14.96	185	225	89.5	90.45	90.05	86	83.93	75.48
1.5	182T	2Y/Y	H	1180	1.53	2.3	13.3	6.68	190	250	87.5	86.77	84.20	70	61.28	48.19
2	184T	2Y/Y	J	1180	1.98	3.0	18.1	8.90	180	240	88.5	88.0	85.52	70	60.84	47.80
7.5	213T	2△/△	H	3535	2.18	8.8	59.5	11.14	250	290	89.5	90.02	88.85	89	89.52	84.33
10	215T	2△/△	G	3530	2.58	11.7	76.5	14.88	240	280	90.2	90.79	89.57 .57	89	87.69	84.29
7.5	213T	2△/△	G	1765	3.35	9.0	56.9	22.32	250	280	91.7	92.23	90.94	85	82.41	73.63
10	215T	2△/△	G	1765	4.18	12.0	77.9	29.76	240	200	91.7	92.27	91.13	85	82.09	72.98
3	213T	2Y/Y	J	1185	2.35	4.2	28.4	13.30	185	230	89.5	89.35	87.78	74	66.83	55.17
5	215T	2Y/Y	H	1180	3.41	7.1	42.1	22.26	170	215	89.5	89.20	88.31	74	68.4	57.98
15	254T	2△/△	G	3560	4.23	17.1	110	22.13	220	250	91.0	90.83	89.12	90	90.52	85.65
20	256T	2△/△	F	3555	4.97	22.9	140	29.55	220	250	91.0	91.16	90.03	90	89.71	85.40
15	254T	2△/△	G	1780	5.04	17.9	104	44.26	180	230	92.4	93.12	92.86	85	83.55	77.75

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
