6KV 10KV YKK Series High Voltage 220kw-4500kw 3 Phase AC Asynchronous Electric Motor

1, YKK-series (3kv, 6kv,10kV) motor, is of closed squirrel-cage three phase asynchronous motor.

2, The protection degree of the motor isof IP44/IP54 and the cooling method is of IC611.

3, The motor has such advantage as high efficiency, energy-saving low noise, lowvibration, light weight and reliable performance.

They are easy for installation and maintenance.

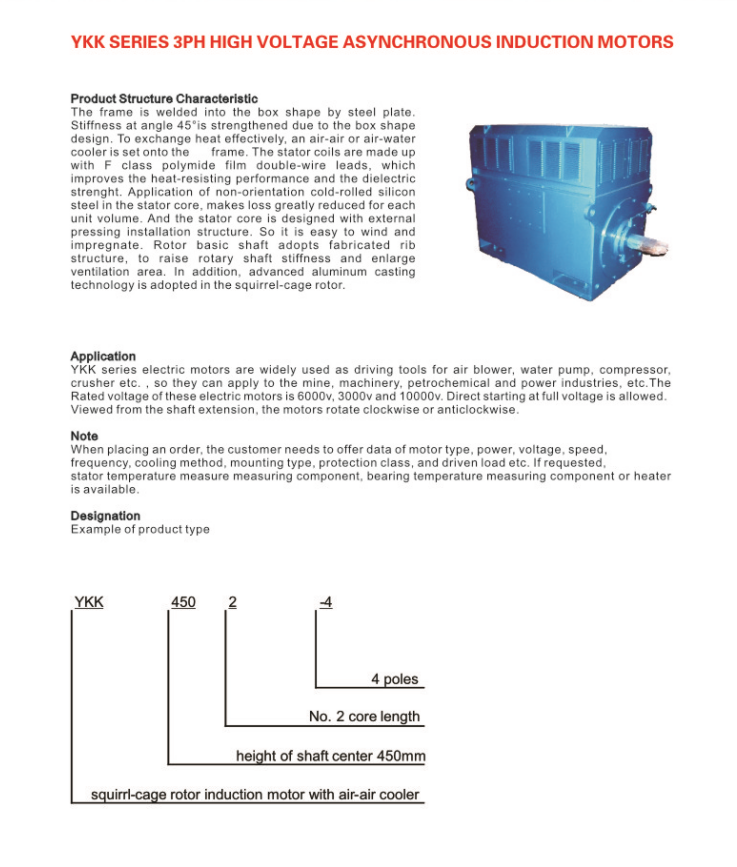

4, YKK series motor is design into box type construction. The frame is light in weight and good in rigid and it is made of steel plates by melding. Air-water cooler is fixed at the top of motor frame. It is convenient for replacement and maintenance.

5, The stator of motor adopts for press construction. The winding of motor is for VPI impregnating, which ensure the reliable of the insulation, the mechanical stress and the capable of resistant humidity. This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc.

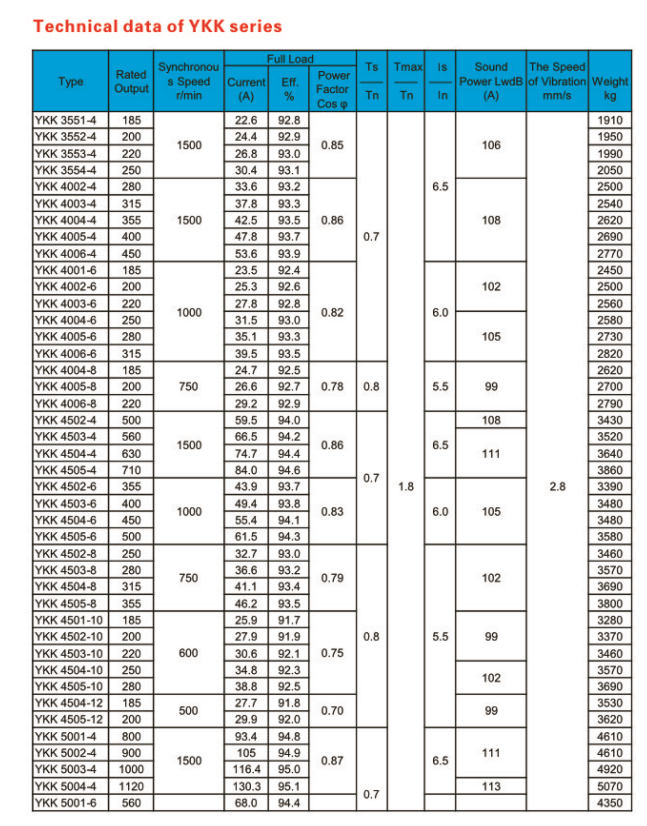

6, High voltage electric motor series adopts foreign advanced technology, combined with the company's own practical experience in producing high voltage motor designed and manufactured, our high-voltage motors meet the relevant standards of the International Electrotechnical Commission (IEC), its rated frequency is 50Hz, rated voltage is 3KV, 6KV, 10KV, we can also manufacture 60Hz and other voltage high-voltage motors according to customer requirements.

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
