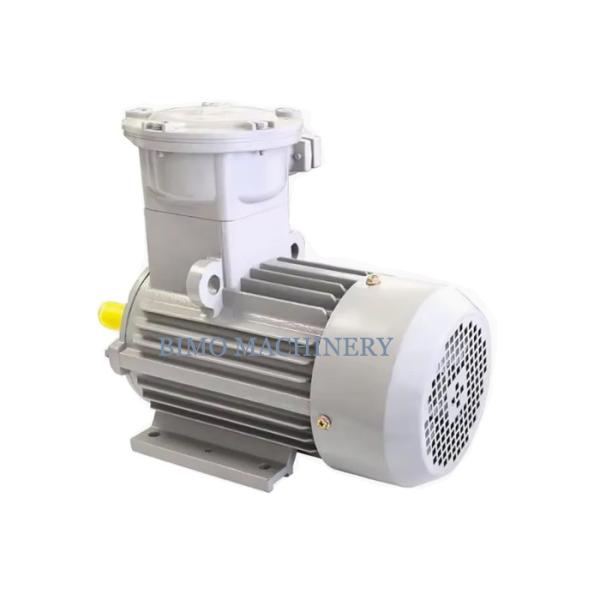

High Efficiency 5.5kw 380V 660V Exd II Bt4 GB Ybx4 Series Explosion Proof Three Phase Electric Asynchronous Motor
Electric motor frame from 56 - 355, output range from 0.17HP to 430HP
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
Optional voltage 110V, 120V, 220V, 240V, 220/380V, 230V/400V, 380V/660V, 50HZ or 60HZ
Protection type IP44, IP54, IP55 on request
1, Strengthed Base safe and srable ,stron endurance and good performance
2, High strength carbon steel shaft, the new high-strength steet shaft head is not easy to deform and durable
3, safety insulatin sleeve,anti-static,fire-proof,safe to use, electricity safty
4, Cooling hood,large hole spacing can effctively dissipate heat under the premise of ensuring safely.
| Type | Asynchronous flame proof motor | Cooling Method | IC411 |
| Phase | Three Phase | Protection Class | IP55 |
| Voltage | 380V, 660V, 380/660V/Customized | Insulation Class | F |
| Rated Output | 0.75-315kw (1-425HP) | No. of poles | 2-10 pole |
| Rated Frequency | 50Hz/60Hz | Duty | S1 |
|
|
