    YE2 YE3 IE2 IE3 IE4 Squirrel Cage Three Phase Motor 0.75KW 3KW 15KW 1HP 3HP 20HP

    Ask Lasest Price
    Brand Name : BM
    Model Number : IE3
    Certification : CE
    Price : USD38-USD680
    Payment Terms : T/T
    Supply Ability : 1000pcs per day
    Delivery Time : Usually within 30 days
    • Product Details
    • Company Profile

    YE2 YE3 IE2 IE3 IE4 Squirrel Cage Three Phase Motor 0.75KW 3KW 15KW 1HP 3HP 20HP

    YE2 YE3 IE2 IE3 IE4 0.75KW 3KW 15KW 1HP 3HP 20HP Squirrel Cage Three Phase Ac Induction Electric Motor

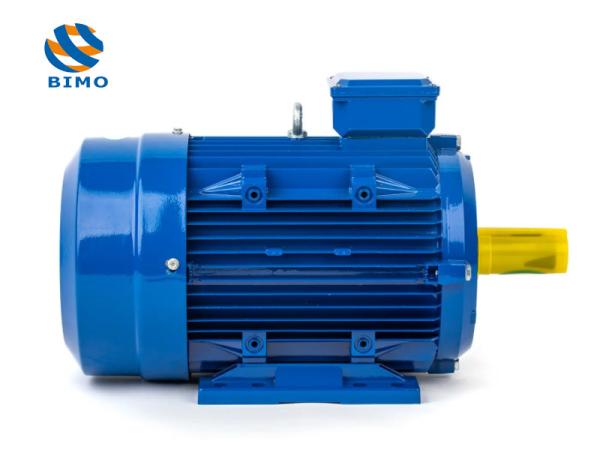

    IE3 Series Three phase AC Motor


    1, YE3 series motors are totally enclosed fan cooling three phase squirrel cage induction motor.

    2, YE3 series motors have outstanding performance, such as high efficiency, energy saving, high starting torque, low noise, little
    vibration, reliable operation and easy maintenance, etc.

    3, It is widely used in many places where do not have combustible, explosive or corrosive gas, and without special requirements,
    such as driving equipments of various machineries such as: machine tools, blowers, pumps, air compressors, transporters,
    agricultural and food processing.

    4, The Y connection for moor of 3kw and below; and delta connection for 4kw and above.


    Frame SizePolesRated
    Power
    HP
    (Horse
    power)
    RPM
    (Revolutions
    Per Minute)
    YE3-80-120.75 kW1 hp2843
    YE3-80-221.1 kW1.5 hp2843
    YE3-90S21.5 kW2 hp2856
    YE3-90L22.2 kW3 hp2856
    YE3-100L23 kW4 hp2833
    YE3-112M24 kW5.5 hp2892
    YE3-132S125.5 kW7.5 hp2910
    YE3-132S227.5 kW10 hp2937
    YE3-160M1211 kW15 hp2937
    YE3-160M2215 kW20 hp2937
    YE3-160L218.5 kW25 hp2937
    YE3-180M222 kW30 hp2946
    YE3-200L1230 kW40 hp2969
    YE3-200L2237 kW50 hp2973
    YE3-225M245 kW60 hp2964
    YE3-250M255 kW75 hp2969
    YE3-280S275 kW100 hp2969
    YE3-280M290 kW120 hp2973
    YE3-315S2110 kW150 hp2978
    YE3-315M2132 kW180 hp2978
    YE3-315L12160 kW215 hp2978
    YE3-315L22200 kW270 hp2978

    1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

    production of enameled wire,high thermal conductivity,good heat dissipation effect.


    2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

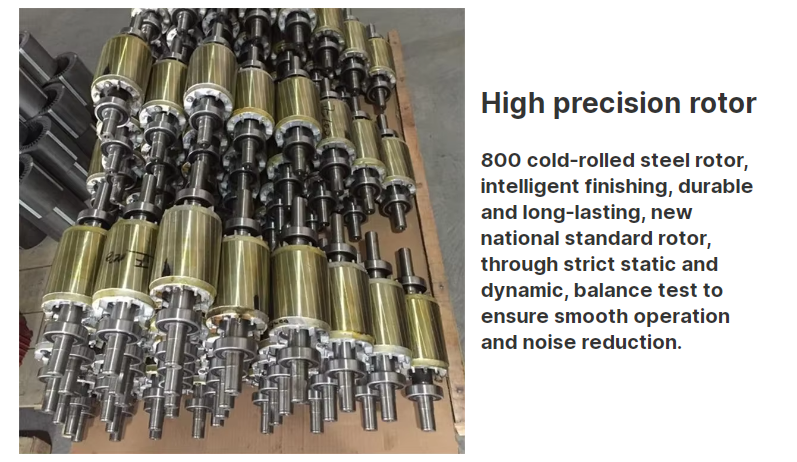

    3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.




    FAQ
    Q: Are you Factory or Trading Company?
    A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

    Q: What is your warranty?
    A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

    Q: What kind of motor can you supply?
    A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

    Q: Do you offer OEM Service?
    A: Yes. We offer OEM/ODM service.

    Q: What is your lead Time?
    A: Usually 10 days. Precise Time depend on Qty.
