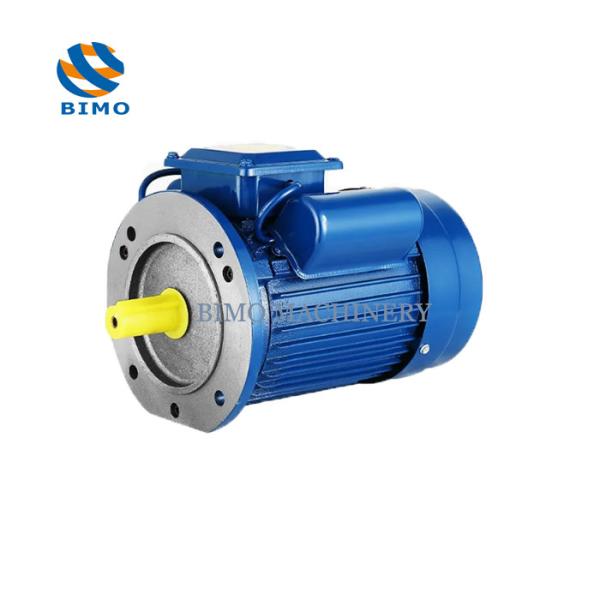

YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

Ask Lasest Price
Brand Name :	BM
Model Number :	YC100L-2
Certification :	CE
Price :	USD35-USD120
Payment Terms :	T/T
Supply Ability :	10000pcs per month
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

YC100L-2 3.7KW 5hp B5 Cast Iron Single Phase Electric Motor

1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.

2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Model	Power		Current	Power Factor	Eff	Speed
			(A)	(cos垄)	(%)	(r/min)	locked torque	locked current	Tmax/
							Rated torque	Rated current	Tn
	Hp	kW					Tst/Tn	Ist/In
YC7112	1/4	0.18	1.89	0.72	60	2800	3	7	1.8
YC7122	1/3	0.25	2.4	0.74	64	2800	3	7	1.8
YC8012	1/2	0.37	3.4	0.77	65	2800	2.8	6.5	1.8
YC8022	3/4	0.55	4.7	0.79	68	2800	2.8	6.5	1.8
YC90S-2	1	0.75	6.1	0.8	70	2800	3	6.5	1.8
YC90L-2	1.5	1.1	8.7	0.8	72	2800	2.5	7	1.8
YC90L-2	2	1.5	11.4	0.81	74	2800	2.5	7	1.8
YC100L-2	3	2.2	16.5	0.81	75	2800	2.2	7	1.8
YC100L1-2	4	3	21.88	0.82	76	2800	2.2	6.8	1.8
YC100L-2	5	3.7	26.64	0.82	77	2800	2.2	6.4	1.8
YC112M-2	4	3	21.4	0.82	76	2800	2.2	7	1.8
YC7114	1/6	0.12	1.88	0.58	50	1400	3	9	1.8
YC7124	1/4	0.18	2.49	0.62	53	1400	2.8	7	1.8
YC8014	1/3	0.25	3.11	0.63	58	1400	2.8	6	1.8
YC8024	1/2	0.37	4.24	0.64	62	1400	2.5	6	1.8
YC90S-4	3/4	0.55	5.5	0.69	66	1400	2.5	6	1.8
YC90L-4	1	0.75	6.9	0.73	68	1400	2.5	6.5	1.8
YC90L-4	1.5	1.1	9.6	0.74	71	1400	2.5	6.5	1.8
YC100L-4	2	1.5	12.5	0.75	73	1400	2.5	6.5	1.8
YC112M-4	3	2.2	17.8	0.76	74	1400	2.2	6.5	1.8
YC132S-4	4	3	23.6	0.77	75	1400	2.1	6.5	1.8
YC132S-4	5	3.7	28	0.79	76	1400	2.1	6.5	1.8
YC132M-4	7.5	5.5	32.5	0.95	81	1400	2.1	6.5	1.8

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
