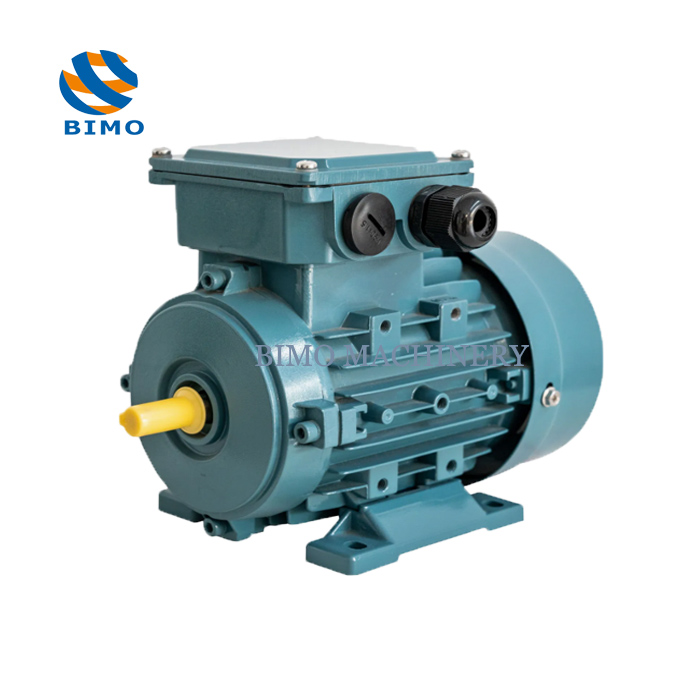

YS MS Premium High Efficiency Aluminum Housing Three Phase Induction AC Electric Asynchronous Motor

1, MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.

2, The efficiency of MS motor meets EFF2 standard in E. U., and can reach the EFF1 standard if requested. MS motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.

3, MS motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motor.

4, MS motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc.

YS Series Three phase asynchronous ac electric induction motor

YS series three phase asynchronous motor is designed and manufactured according to the national standard JB/T1009-1991 It has the characteristics of high efficiency,energy-saving, low noise,little vibration,long service life,convenient maintenance and High srarting The motor is widely used in food machinery,blower fan and other machiners.

Frame number: 63 ~ 90 Power: 0.12 ~ 2.2KW

Working system: S1

Applications: General purpose including cutting, machine, pumps, fans, conveyors, Agricultural Machinery and food machinery
Features:Good-looking appearance, High efficiency and energy saving, low noise and little vibration. F insulation class, IP54 or IP55 protection class

OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 220/380V, 400V, 415V
Rated frequency: 50Hz / 60 Hz

Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
